Busbar & Insulators

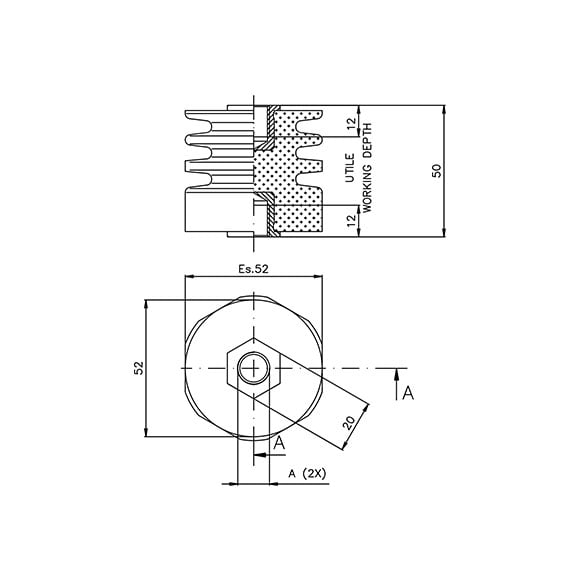

Height 50 mm
Diameter 54 mm
Shrink distance 120 mm
Operating temperature (outdoor version) °C 180
Dry test voltage kV 14
Maximum load under the test conditions prescribed by EN 61373 N 350
Breaking load in bending N 5 000
Dragbrottsbelastning N 11 000
Kompressiv brottbelastning N 70 000
Torsion breaking torque Nm 80
Weight g 140
| Article No | Description of the project |
| 3121102030 | B50 Ot M10 |
| 3121062010 | B50 Ot M8 |
| 3121226073 | E50 Stainless steel M10 |
| 3121186073 | E50 Stainless steel M10 |
| 3121062033 | E50 Ot M10 |
| 3121062053 | E50 Ot M12 |
| 3121062013 | E50 Ot M8 |
Busbar & Insulators
Busbar & Insulators
Busbar & Insulators
Busbar & Insulators
Busbar & Insulators
Busbar & Insulators
Enclosures & glands
Post insulators in thermosetting resin are designed for harsh environments.
Examples include high stress with poor precision or thermal variation, very high vibration, environments with industrial pollution, moisture, UV rays or overvoltage.
Epoxy bearing insulators can withstand 200°C for a very long time and even higher temperatures for short periods.
